HDPE or Polyester Uniaxial Geogrids in Retaining Wall？
Introduction: The Backbone of Modern Retaining Walls
In the world of geotechnical engineering, uniaxial geogrids are the unsung heroes behind countless mechanically stabilized earth (MSE) walls, steepened slopes, and bridge abutments. These high-strength polymeric grids provide tensile reinforcement in a single direction, allowing engineers to build taller, safer, and more cost-effective earth-retaining structures. For permanent retaining wall applications, two polymer types dominate the market: High-Density Polyethylene (HDPE) and Polyester (PET) . While both serve the same fundamental purpose—reinforcing soil through tensile strength and soil interlock—they offer distinctly different performance characteristics, advantages, and limitations. Understanding these differences is critical for engineers, contractors, and procurement professionals seeking the optimal solution for their specific project requirements. This article provides a detailed, side-by-side comparison of HDPE and PET uniaxial geogrids for retaining wall reinforcement, exploring their respective strengths, weaknesses, and ideal applications.
HDPE Uniaxial Geogrids: Strength and Durability
What Are They?
HDPE uniaxial geogrids are manufactured from high-density polyethylene through processes such as extrusion, punching, and stretching. The result is a stiff, open-structure grid with elongated apertures oriented in the direction of greatest strength. The distinctive configuration allows the geogrid to effectively interlock with soil grains, preventing load transfer, hindering soil displacement, and improving overall earth structure stability.
Advantages of HDPE Uniaxial Geogrids
1. High Stiffness and Immediate Load Transfer
HDPE geogrids exhibit high stiffness, which means they mobilize tensile strength with minimal deformation. This characteristic makes them particularly effective for applications where immediate load transfer is required. The stiff monolithic structure provides superior junction strength, ensuring that loads are efficiently distributed across the grid.
2. Excellent Chemical Resistance
HDPE is inherently resistant to a wide range of chemicals, including acids, alkalis, and salts. This makes HDPE geogrids highly suitable for environments where chemical exposure is a concern, such as industrial sites, landfills, and coastal areas. Studies have demonstrated excellent performance of HDPE geogrids in various aggressive solutions, including calcareous (pH 9.0), phosphate (pH 4.5), limerock, seawater, and freshwater environments.
3. Proven Durability in Harsh Environments
HDPE geogrids have demonstrated outstanding long-term durability in real-world applications. In one notable project in Vietnam, Tensar RE500 series HDPE uniaxial geogrids were deployed in marine environmental conditions and proven to perform stably over the long term. Another study involving exhumed HDPE geogrids found that they had not experienced any significant change in physical or performance properties over decades of service.
4. Established Design Standards
HDPE geogrids are supported by extensive testing and well-established design methodologies. The FHWA (Federal Highway Administration) provides default reduction factors for HDPE geogrids based on thermo-oxidation resistance testing, giving engineers confidence in their long-term performance predictions.
Limitations of HDPE Uniaxial Geogrids
1. Higher Creep Susceptibility
Creep—the gradual deformation of a material under sustained load over time—is a critical consideration for permanent retaining walls. Research has consistently shown that HDPE geogrids undergo larger creep than PET geogrids. In accelerated creep-rupture tests, all HDPE specimens exposed to 50% of their ultimate load experienced creep rupture, and specimens at 40% ultimate load also failed when subjected to temperatures of 55°C and 65°C. This higher creep susceptibility means that HDPE geogrids require more conservative design reduction factors, potentially reducing their long-term design strength.
2. Lower Tensile Strength Ceiling
The ultimate tensile strength of HDPE uniaxial geogrids is limited compared to some alternative materials. Research indicates that HDPE uniaxial geogrids typically reach ultimate tensile strengths of approximately 180 kN/m. While this is sufficient for many applications, it may be inadequate for very tall walls or heavily loaded structures.
3. Less Flexibility in Bending
Compared to PET, HDPE is relatively stiff and less flexible in bending. This can make installation more challenging on uneven subgrades or in applications requiring the geogrid to conform to irregular surfaces.
Polyester (PET) Uniaxial Geogrids: Superior Long-Term Performance
What Are They?

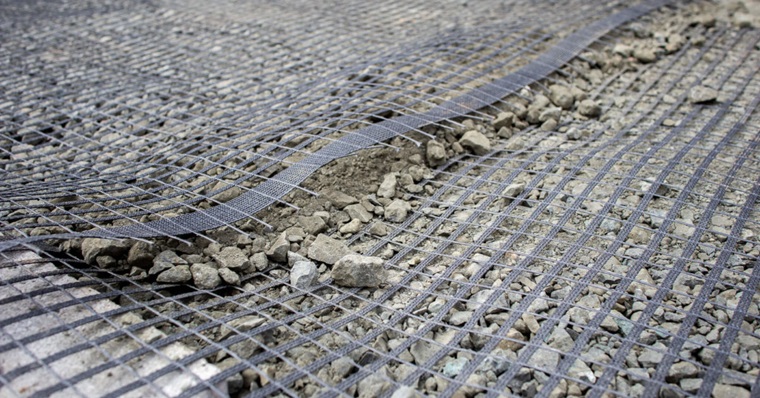

PET uniaxial geogrids are manufactured from high-tenacity polyester yarns that are knitted or woven into a dimensionally stable network of apertures. The yarns have high molecular weight and excellent tensile strength. Many PET geogrids are coated with a bituminous saturation coating to provide additional chemical and mechanical protection, enhancing durability in harsh environments.
Advantages of PET Uniaxial Geogrids
1. Superior Creep Resistance
The most significant advantage of PET geogrids is their exceptional long-term creep resistance. PET has superior long-term creep resistance compared with HDPE or polypropylene polymers. In creep-rupture studies, PET specimens did not experience creep rupture except in cases attributed to specimen defects or defective clamping—while HDPE specimens failed under similar loading conditions. PET geogrids typically exhibit creep strain of less than 3–5% at 60% ultimate load after 10,000–100,000 hours, compared to polypropylene which often exceeds 10–15%. This superior creep performance translates directly into higher long-term design strengths (LTDS) and longer design lives.
2. High Tensile Strength at Low Strain
PET uniaxial geogrids deliver high tensile strength at low strain—typically 35–50% of ultimate strength at 2% strain. This is critical for MSE walls, which have strict deformation limits of 1–2%. The low-elongation characteristics ensure that the wall face remains stable and does not experience excessive outward movement.
3. Proven Design Lives of 50–120+ Years
Polyester geogrids have been used in thousands of monitored permanent structures worldwide with negligible post-construction strain. They consistently achieve design lives of 50–120+ years when correctly factored according to FHWA, AASHTO, BS 8006, and Eurocode 7 standards. This long-term reliability makes PET the material of choice for permanent infrastructure.
4. Excellent Chemical and Biological Durability
PET geogrids are stable across a wide pH range (2–13) and are resistant to hydrolysis and microbial degradation. The PVC coating applied to many PET geogrids provides further protection from environmental effects.
5. Wide Strength Range
PET uniaxial geogrids are available in a broad range of tensile strengths, from 30 kN/m up to 1300 kN/m. This versatility allows engineers to select the optimal grade for virtually any project requirement.
6. Ease of Installation
PET geogrids are available in wide rolls (up to 3.9–5.9 meters), minimizing wastage and reducing labour during installation. They have no "memory" and won't roll up, making them easier to handle on site.
Limitations of PET Uniaxial Geogrids
1. Alkaline Sensitivity

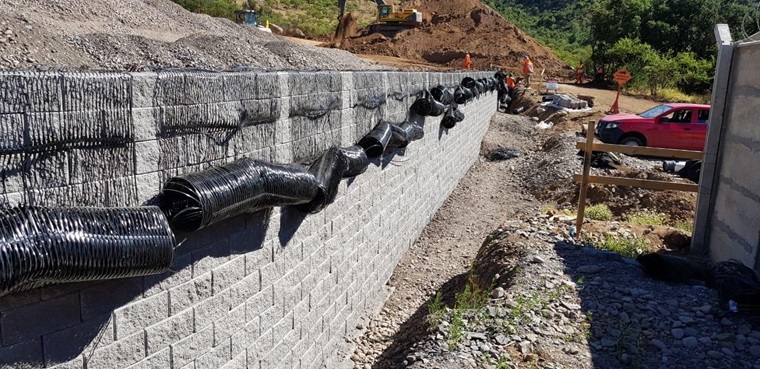

The primary concern with PET geogrids is their sensitivity to high alkalinity. When the geogrid or geotextile reinforcement is made from PET resin, a concern over durability with respect to high alkalinity is sometimes expressed. This is particularly relevant in masonry block retaining walls, where very high alkalinity can occur between rows of masonry blocks. While coatings provide protection, designers must carefully consider the pH environment of the backfill and facing materials.
2. Lower Junction Strength
Compared to HDPE, PET exhibits a relatively lower junction strength. The junctions (where longitudinal and transverse ribs meet) are critical for load transfer and soil interaction. While modern PET geogrids are manufactured with welded or knitted junctions that provide adequate performance, this remains a consideration in design.
3. Potential Hydrolysis Concerns in Certain Environments
While PET is generally resistant to hydrolysis, prolonged exposure to high temperatures and moisture can accelerate degradation. Modern coated PET geogrids are designed to mitigate this risk, but designers should still consider the specific environmental conditions of the project site.
Direct Comparison: HDPE vs. PET Uniaxial GeogridsIn the world of geotechnical engineering, uniaxial geogrids are the unsung heroes behind countless mechanically stabilized earth (MSE) walls, steepened slopes, and bridge abutments. These high-strength polymeric grids provide tensile reinforcement in a single direction, allowing engineers to build taller, safer, and more cost-effective earth-retaining structures. For permanent retaining wall applications, two polymer types dominate the market: High-Density Polyethylene (HDPE) and Polyester (PET) . While both serve the same fundamental purpose—reinforcing soil through tensile strength and soil interlock—they offer distinctly different performance characteristics, advantages, and limitations. Understanding these differences is critical for engineers, contractors, and procurement professionals seeking the optimal solution for their specific project requirements. This article provides a detailed, side-by-side comparison of HDPE and PET uniaxial geogrids for retaining wall reinforcement, exploring their respective strengths, weaknesses, and ideal applications.
HDPE Uniaxial Geogrids: Strength and Durability
What Are They?
HDPE uniaxial geogrids are manufactured from high-density polyethylene through processes such as extrusion, punching, and stretching. The result is a stiff, open-structure grid with elongated apertures oriented in the direction of greatest strength. The distinctive configuration allows the geogrid to effectively interlock with soil grains, preventing load transfer, hindering soil displacement, and improving overall earth structure stability.
Advantages of HDPE Uniaxial Geogrids
1. High Stiffness and Immediate Load Transfer
HDPE geogrids exhibit high stiffness, which means they mobilize tensile strength with minimal deformation. This characteristic makes them particularly effective for applications where immediate load transfer is required. The stiff monolithic structure provides superior junction strength, ensuring that loads are efficiently distributed across the grid.
2. Excellent Chemical Resistance
HDPE is inherently resistant to a wide range of chemicals, including acids, alkalis, and salts. This makes HDPE geogrids highly suitable for environments where chemical exposure is a concern, such as industrial sites, landfills, and coastal areas. Studies have demonstrated excellent performance of HDPE geogrids in various aggressive solutions, including calcareous (pH 9.0), phosphate (pH 4.5), limerock, seawater, and freshwater environments.
3. Proven Durability in Harsh Environments
HDPE geogrids have demonstrated outstanding long-term durability in real-world applications. In one notable project in Vietnam, Tensar RE500 series HDPE uniaxial geogrids were deployed in marine environmental conditions and proven to perform stably over the long term. Another study involving exhumed HDPE geogrids found that they had not experienced any significant change in physical or performance properties over decades of service.
4. Established Design Standards
HDPE geogrids are supported by extensive testing and well-established design methodologies. The FHWA (Federal Highway Administration) provides default reduction factors for HDPE geogrids based on thermo-oxidation resistance testing, giving engineers confidence in their long-term performance predictions.
Limitations of HDPE Uniaxial Geogrids
1. Higher Creep Susceptibility
Creep—the gradual deformation of a material under sustained load over time—is a critical consideration for permanent retaining walls. Research has consistently shown that HDPE geogrids undergo larger creep than PET geogrids. In accelerated creep-rupture tests, all HDPE specimens exposed to 50% of their ultimate load experienced creep rupture, and specimens at 40% ultimate load also failed when subjected to temperatures of 55°C and 65°C. This higher creep susceptibility means that HDPE geogrids require more conservative design reduction factors, potentially reducing their long-term design strength.
2. Lower Tensile Strength Ceiling
The ultimate tensile strength of HDPE uniaxial geogrids is limited compared to some alternative materials. Research indicates that HDPE uniaxial geogrids typically reach ultimate tensile strengths of approximately 180 kN/m. While this is sufficient for many applications, it may be inadequate for very tall walls or heavily loaded structures.
3. Less Flexibility in Bending
Compared to PET, HDPE is relatively stiff and less flexible in bending. This can make installation more challenging on uneven subgrades or in applications requiring the geogrid to conform to irregular surfaces.
Polyester (PET) Uniaxial Geogrids: Superior Long-Term Performance
What Are They?
PET uniaxial geogrids are manufactured from high-tenacity polyester yarns that are knitted or woven into a dimensionally stable network of apertures. The yarns have high molecular weight and excellent tensile strength. Many PET geogrids are coated with a bituminous saturation coating to provide additional chemical and mechanical protection, enhancing durability in harsh environments.
Advantages of PET Uniaxial Geogrids
1. Superior Creep Resistance
The most significant advantage of PET geogrids is their exceptional long-term creep resistance. PET has superior long-term creep resistance compared with HDPE or polypropylene polymers. In creep-rupture studies, PET specimens did not experience creep rupture except in cases attributed to specimen defects or defective clamping—while HDPE specimens failed under similar loading conditions. PET geogrids typically exhibit creep strain of less than 3–5% at 60% ultimate load after 10,000–100,000 hours, compared to polypropylene which often exceeds 10–15%. This superior creep performance translates directly into higher long-term design strengths (LTDS) and longer design lives.
2. High Tensile Strength at Low Strain
PET uniaxial geogrids deliver high tensile strength at low strain—typically 35–50% of ultimate strength at 2% strain. This is critical for MSE walls, which have strict deformation limits of 1–2%. The low-elongation characteristics ensure that the wall face remains stable and does not experience excessive outward movement.
3. Proven Design Lives of 50–120+ Years
Polyester geogrids have been used in thousands of monitored permanent structures worldwide with negligible post-construction strain. They consistently achieve design lives of 50–120+ years when correctly factored according to FHWA, AASHTO, BS 8006, and Eurocode 7 standards. This long-term reliability makes PET the material of choice for permanent infrastructure.
4. Excellent Chemical and Biological Durability
PET geogrids are stable across a wide pH range (2–13) and are resistant to hydrolysis and microbial degradation. The PVC coating applied to many PET geogrids provides further protection from environmental effects.
5. Wide Strength Range
PET uniaxial geogrids are available in a broad range of tensile strengths, from 30 kN/m up to 1300 kN/m. This versatility allows engineers to select the optimal grade for virtually any project requirement.
6. Ease of Installation
PET geogrids are available in wide rolls (up to 3.9–5.9 meters), minimizing wastage and reducing labour during installation. They have no "memory" and won't roll up, making them easier to handle on site.
Limitations of PET Uniaxial Geogrids
1. Alkaline Sensitivity
The primary concern with PET geogrids is their sensitivity to high alkalinity. When the geogrid or geotextile reinforcement is made from PET resin, a concern over durability with respect to high alkalinity is sometimes expressed. This is particularly relevant in masonry block retaining walls, where very high alkalinity can occur between rows of masonry blocks. While coatings provide protection, designers must carefully consider the pH environment of the backfill and facing materials.
2. Lower Junction Strength
Compared to HDPE, PET exhibits a relatively lower junction strength. The junctions (where longitudinal and transverse ribs meet) are critical for load transfer and soil interaction. While modern PET geogrids are manufactured with welded or knitted junctions that provide adequate performance, this remains a consideration in design.
3. Potential Hydrolysis Concerns in Certain Environments
While PET is generally resistant to hydrolysis, prolonged exposure to high temperatures and moisture can accelerate degradation. Modern coated PET geogrids are designed to mitigate this risk, but designers should still consider the specific environmental conditions of the project site.
| Characteristic | HDPE Uniaxial Geogrid | PET Uniaxial Geogrid |
| Creep Resistance | Lower; larger creep deformation | Superior; minimal creep under sustained load |
| Tensile Strength Range | Up to ~180 kN/m | 30–1200 kN/m |
| Stiffness | High stiffness; excellent junction strength | Good stiffness; lower junction strength |
| Flexibility | Less flexible in bending | More flexible in bending |
| Chemical Resistance | Excellent; resistant to acids, alkalis, salts | Good; stable pH 2–13; alkaline sensitivity concern |
| Design Life | 50~100+ years | 50~120+ years |
| Primary Application | General retaining walls, slopes, marine environments | Permanent MSE walls, steep slopes, long-term infrastructure |
| Creep-Rupture Performance | Failed at 40–50% ultimate load in accelerated testing | No creep rupture except in defective specimens |
Key Considerations for Material Selection
1. Project Design Life
For permanent retaining walls with design lives of 75–120 years, PET geogrids are generally the preferred choice due to their superior creep resistance and proven long-term performance. For temporary structures or projects with shorter design lives, HDPE may offer a cost-effective alternative.
2. Wall Height and Loading
For tall walls or structures subject to heavy loads, the higher tensile strength available in PET geogrids (up to 400 kN/m) may be necessary. HDPE geogrids are suitable for lower walls and less demanding applications.
3. Environmental Conditions
1. Project Design Life
For permanent retaining walls with design lives of 75–120 years, PET geogrids are generally the preferred choice due to their superior creep resistance and proven long-term performance. For temporary structures or projects with shorter design lives, HDPE may offer a cost-effective alternative.
2. Wall Height and Loading
For tall walls or structures subject to heavy loads, the higher tensile strength available in PET geogrids (up to 400 kN/m) may be necessary. HDPE geogrids are suitable for lower walls and less demanding applications.
3. Environmental Conditions
- High alkalinity: If the backfill or facing materials are highly alkaline (e.g., certain masonry block systems), PET geogrids require careful evaluation and may need additional protection.
- Chemical exposure: Both polymers perform well, but HDPE has a slight edge in aggressive chemical environments.
- Marine/coastal environments: Both have been used successfully, with HDPE demonstrating proven marine durability.
4. Deformation Tolerance
If the structure has strict deformation limits, PET's low-strain, high-strength characteristics are advantageous. HDPE's higher flexibility may be beneficial where some deformation can be tolerated.
The Pullout Performance Question
Interestingly, research has shown that the effect of polymer type (PET vs. HDPE) has little effect on how a geogrid performs in a fill material in terms of pullout resistance. In one case, the two polymer types exhibited differing trends within the same fill material. This suggests that soil interaction—rather than polymer type—is often the dominant factor in pullout performance. However, the presence of fines (>12% by weight) in the fill material results in a significant decrease in the coefficient of interaction when compared to clean granular fills.
This finding underscores the importance of proper backfill selection and compaction, regardless of the polymer chosen.
Conclusion: Choosing the Right Geogrid for Your Project
Both HDPE and PET uniaxial geogrids are proven, reliable solutions for retaining wall reinforcement. The choice between them ultimately depends on project-specific requirements:
Choose HDPE Uniaxial Geogrids when:
If the structure has strict deformation limits, PET's low-strain, high-strength characteristics are advantageous. HDPE's higher flexibility may be beneficial where some deformation can be tolerated.
The Pullout Performance Question
Interestingly, research has shown that the effect of polymer type (PET vs. HDPE) has little effect on how a geogrid performs in a fill material in terms of pullout resistance. In one case, the two polymer types exhibited differing trends within the same fill material. This suggests that soil interaction—rather than polymer type—is often the dominant factor in pullout performance. However, the presence of fines (>12% by weight) in the fill material results in a significant decrease in the coefficient of interaction when compared to clean granular fills.
This finding underscores the importance of proper backfill selection and compaction, regardless of the polymer chosen.
Conclusion: Choosing the Right Geogrid for Your Project
Both HDPE and PET uniaxial geogrids are proven, reliable solutions for retaining wall reinforcement. The choice between them ultimately depends on project-specific requirements:
Choose HDPE Uniaxial Geogrids when:
- The project has a shorter design life or is temporary
- Budget constraints are a primary concern
- The application involves aggressive chemical exposure
- The wall height is moderate and loading demands are not extreme
- Marine or coastal conditions are present (proven durability)
Choose PET Uniaxial Geogrids when:
- The project is a permanent structure with a design life of 50+ years
- Superior creep resistance is critical
- High tensile strength at low strain is required for strict deformation control
- The wall is tall or subject to heavy loads
- Long-term performance and minimal maintenance are priorities
As one industry review notes, "Uniaxial polyester geogrids dominate permanent retaining wall applications due to their superior long-term tensile performance at low elongation compared with most polypropylene or HDPE products". However, HDPE geogrids remain a workhorse solution for countless projects worldwide, offering reliability, durability, and cost-effectiveness.
Ultimately, the best choice is the one that aligns with the specific performance requirements, environmental conditions, and economic constraints of your project. Consulting with a geotechnical engineer and reviewing manufacturer-specific test data will ensure that you select the optimal geogrid for your retaining wall application.
Ultimately, the best choice is the one that aligns with the specific performance requirements, environmental conditions, and economic constraints of your project. Consulting with a geotechnical engineer and reviewing manufacturer-specific test data will ensure that you select the optimal geogrid for your retaining wall application.
