What is the Difference Between Woven and Nonwoven Geotextiles?

What is the Difference Between Woven and Nonwoven Geotextiles?
The main differences between woven and nonwoven geotextiles lie in their manufacturing process, physical structure, mechanical properties, hydraulic performance, and ideal applications. Both are synthetic fabrics (typically polypropylene) used in civil engineering for functions like separation, filtration, reinforcement, stabilization, and drainage, but they perform differently based on how they’re made.

Manufacturing and Structure
Woven geotextiles are produced by weaving yarns (such as monofilament, multifilament, slit-film, or fibrillated slit-film) together on looms, similar to traditional textiles. This creates a structured, uniform pattern with direct and predictable openings.
Nonwoven geotextiles are made by bonding fibers (continuous filaments or short staple fibers) through processes like needle-punching (intertwining fibers mechanically), thermal, or chemical bonding. This results in a random fiber orientation, forming a felt-like material with indirect, unpredictable openings and high porosity.

Main Types of Geotextile Fabrics – Woven Geotextiles and Nonwoven Geotextiles

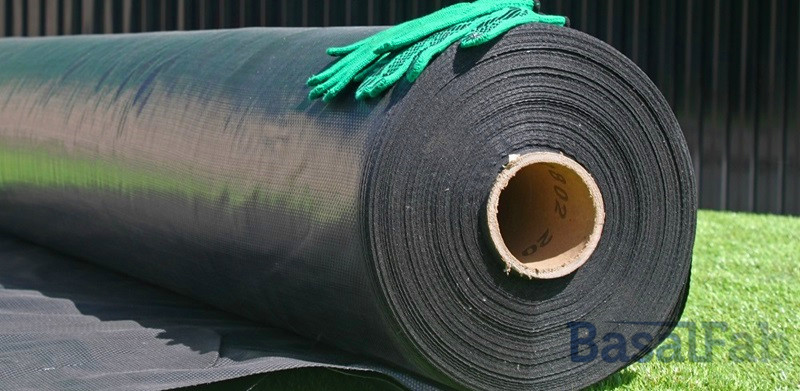

Woven Geotextiles
Woven Geotextiles consist of monofilament, multifilament, slit-film and/or fibrillated slit-film yarns – often in combinations – that are woven into a geotextile on conventional textile weaving machinery using a wide variety of traditional, as well as proprietary, weaving patterns. The variations are many and most all have a direct influence on the physical, mechanical and hydraulic properties of the fabric. The resulting woven geotextiles are typically flexible, exhibit high strength, high modulus, low elongation, and their openings are usually direct and predictable.

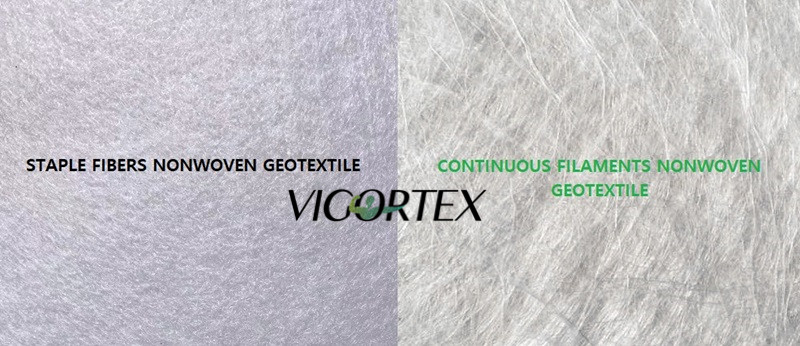

Nonwoven Geotextiles
Nonwoven Geotextiles are often referred to as ‘multipurpose’, and to a great degree deliver on that promise. Contributing to their popularity is their cost-of-manufacture to weight ratio is less than their woven counterparts. The manufacturing process of nonwoven geotextiles is very different from that of woven geotextiles, with needle-punched finishing as the leader. When used in filtration applications it is important to note that the actual mechanics of this function by nonwoven geotextiles are much different than the original woven monofilaments.

Nonwoven geotextiles consist of fibers that are either continuous filament yarns or short staple fibers which are then bonded together by various processes that can include a needling process that intertwines the fibers physically (needle-punched), or a chemical / thermal bonding operation that fuses adjacent fibers together. The resulting nonwoven geotextiles have a random fiber orientation with high porosity and permeability, indirect and unpredictable openings, a thickness ranging from thick felt to a relatively thin fabric, and low modulus with high elongation.

Woven vs Non-woven geotextiles: A deeper look
Feature Woven Geotextile Non-Woven Geotextile
Material Composition Made using slit-film polypropylene or polyester yarns Made using polyester or polypropylene fibers bonded together
Manufacturing Process Manufactured by weaving synthetic fibers into a strong, grid-like structure Manufactured using needle-punching, thermal bonding, or chemical processes
Strength & Durability High tensile strength, durable under heavy loads Lower tensile strength, but still durable for separation applications
Water Permeability Low permeability, limits water flow High permeability, allows water to pass through easily
Primary Use Generally used for soil stabilization and load distribution Primarily used for drainage, filtration, and erosion control
Flexibility Stiff, less flexible compared to non-wovens Soft, flexible, and easier to conform to uneven surfaces
UV Resistance Higher UV resistance due to tightly woven fibers Lower UV resistance, may degrade faster under direct sunlight
Resistance to Puncture More resistant to puncture due to rigid structure Less resistant to puncture but provides better adaptability
Filtration & Drainage Limited filtration ability, mainly used for reinforcement Excellent for filtration and drainage systems
Cost Typically, more expensive due to durability Typically, lower cost, depending on application needs
Typical Applications Road construction, embankments, erosion control, reinforcement Drainage systems, landfills, landscaping, sediment control
